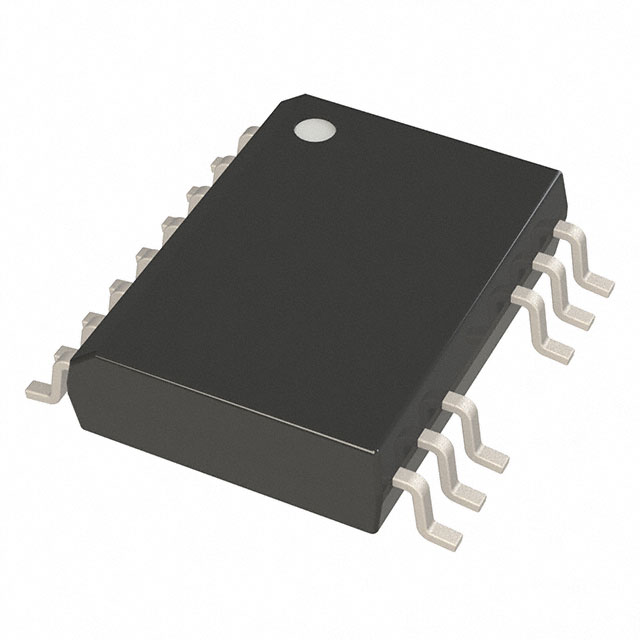

- Product Model UCC21222DR
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 16SOIC
- Classification Gate Drivers
-
PDF
Inventory:5886
Pricing:
- 2500 1.4
- 5000 1.35
Technical Details
- Package / Case 16-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 3V ~ 5.5V
- Input Type CMOS/TTL
- Supplier Device Package 16-SOIC
- Rise / Fall Time (Typ) 5ns, 6ns
- Channel Type Independent
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.25V, 1.6V
- Current - Peak Output (Source, Sink) 4A, 6A
- DigiKey Programmable Not Verified
