Technical Details

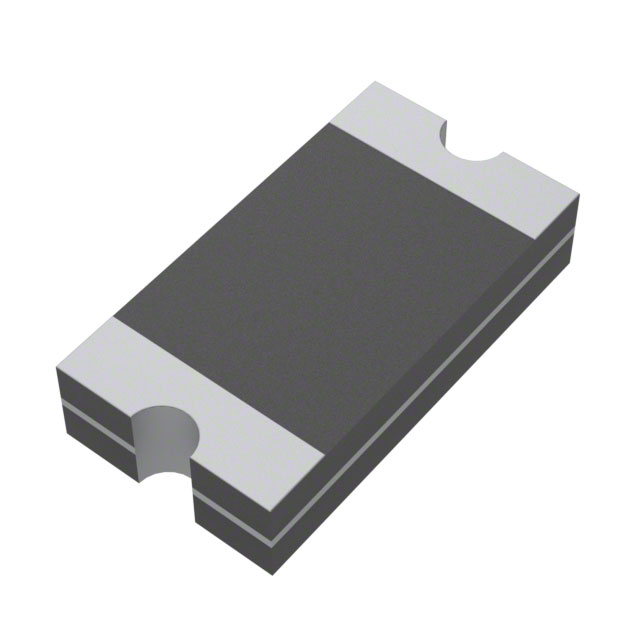

• Package / Case 1206 (3216 Metric), Concave
• Size / Dimension 0.126" L x 0.065" W (3.20mm x 1.65mm)
• Mounting Type Surface Mount
• Type Polymeric
• Operating Temperature -40°C ~ 85°C
• Approval Agency cUL, TUV, UL
• Current - Hold (Ih) (Max) 500 mA
• Current - Trip (It) 1 A
• Voltage - Max 6V
• Thickness (Max) 0.033" (0.85mm)
• Current - Max 100 A
• Time to Trip 100 ms
• Resistance - Initial (Ri) (Min) 150 mOhms
• Resistance - Post Trip (R1) (Max) 700 mOhms
