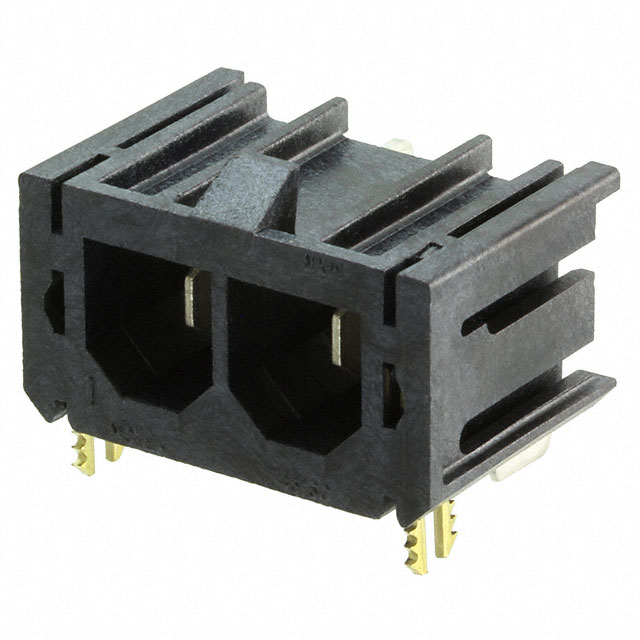

- Product Model MPSC-01-16-01-7.70-01-L-V
- Brand Samtec, Inc.
- RoHS Yes
- Description 5.00 MM POWERSTRIP/30 A SIGNAL/
- Classification Unclassified
-
PDF
Inventory:1677
Technical Details
- Connector Type Receptacle
- Mounting Type Through Hole
- Number of Positions 18 (16 + 2 Power)
- Style Board to Board
- Operating Temperature -55°C ~ 125°C
- Contact Type Forked
- Fastening Type Push-Pull
- Number of Positions Loaded All
- Termination Solder
- Material Flammability Rating UL94 V-0
- Contact Material Copper Alloy, Phosphor Bronze
- Insulation Color Black
- Contact Finish - Mating Gold
- Contact Finish Thickness - Mating 10.0µin (0.25µm)
- Contact Finish - Post Tin
- Contact Shape Square
- Contact Length - Post 0.107" (2.71mm)
- Insulation Height 0.298" (7.57mm)
- Insulation Material Liquid Crystal Polymer (LCP)
- Row Spacing - Mating 0.079" (2.00mm)
- Number of Rows 4
